Metal & Fabric Expansion Joints

As the New England Representative to the industry leader of Metal and Fabric Expansion Joints, we offer:

Externally Pressurized Expansion Joints to accommodate for large amounts of axial movement at high pressures due to thermal expansion, but without the risk of squirm due to the heavy outer shell.

Mid-Corr Expansion Joints for free flexing and controlled flexing to absorb large pipe movements.

Unrestrained Expansion Joints for axial extension, axial compression, lateral offset, and angular movement.

Single Tied Expansion Joints for a fixed overall length.

Universal Expansion Joints consisting of two bellows separated by a pipe spool for containing pressure thrust (either tied or untied).

Hinged Expansion Joints allowing angular movement on a single plane while accommodating for pressure thrust.

Universal Hinged Expansion Joints having two bellows separated by a pipe spool, allowing for large lateral movements in the same plane while containing pressure thrust.

Gimbaled Expansion Joints for angular movements in any plane while resisting pressure thrust.

Universal Gimbaled Expansion Joints having two bellows separated by pipe spool, for large lateral movement and angular movement in any plane while resisting pressure thrust.

Pressure Balanced Expansion Joints to eliminate pressure thrust while accommodating axial compression, axial extension, lateral movement as well as angular movement.

Pressure Balanced Elbows with single or double bellows for accepting axial compression, axial extension, lateral movement, and limited angular motion.

Catofin Expansion Joint for fluid catalytic cracking operate at very high pressures and temperatures with the need to accommodate large thermal movements as well as compensate for the introduction of catalyst.

Fabric Expansion Joints for lateral movement, axial compression, axial extension, torsional and angular deflection. Round corners, single miter, double miter, and camera corners available.



Application Accessories: Standard and Heavy-Duty Liners, Tie-Rods, Covers, Purge Connectors, Test Kits, Leak Indicators, Splice Kits, Expansion Compensators, Pressure Relief / Safety Valve Connectors, Flexible Metal Pump Connectors, and X-Press Units.

Application Services: Site Surveys, Field Services, Installation, Repairs, and Nuclear Certifications.

Expansion Joints are engineered per application in a wide range of materials and end connections. Please contact us today for more information.

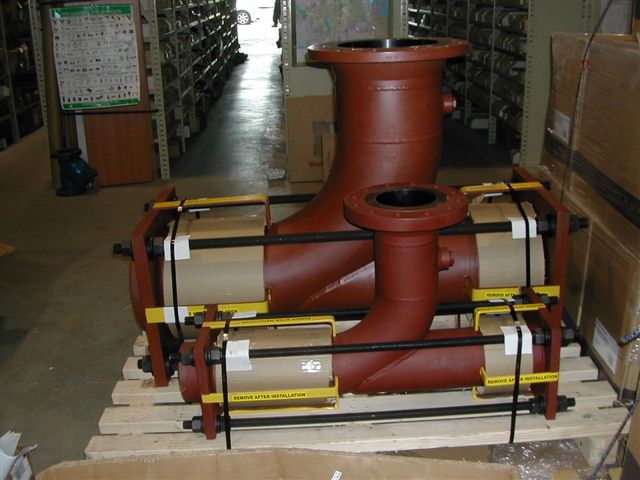

Metal Pressure Balanced Expansion joints

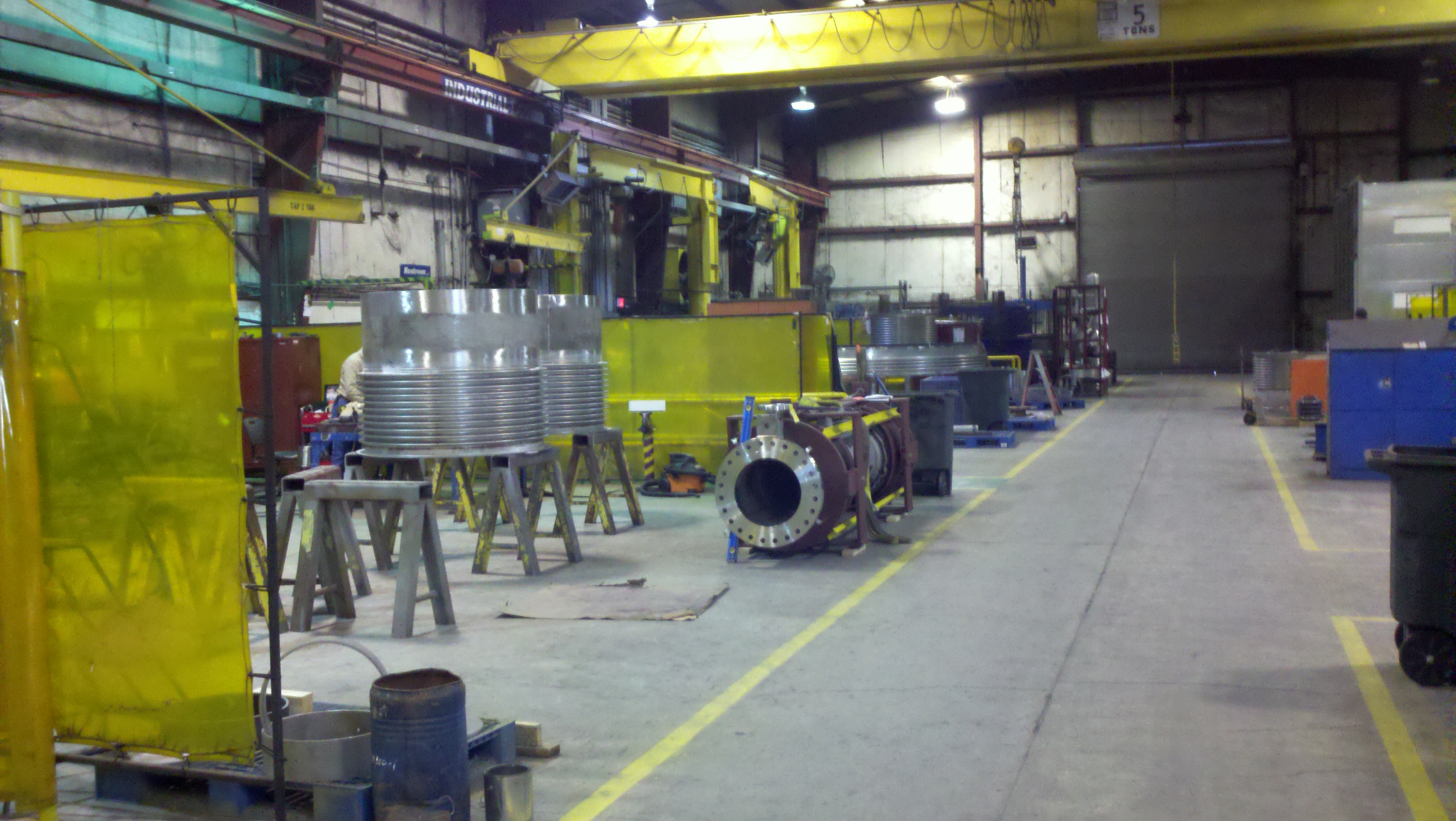

Metal Bellows expansion joints
Metal Expansion Joint

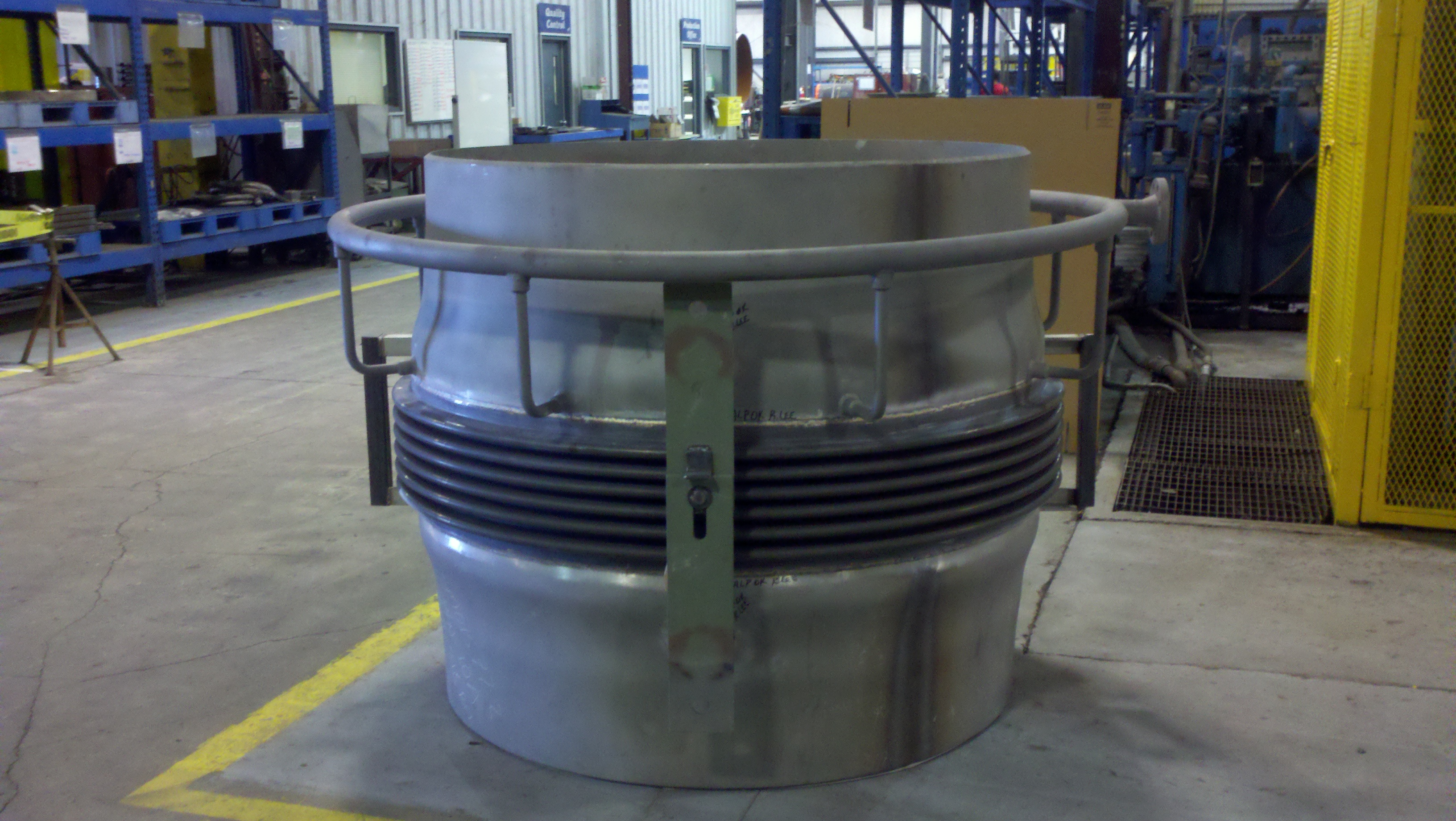

Catofin Metal Expansion joint
